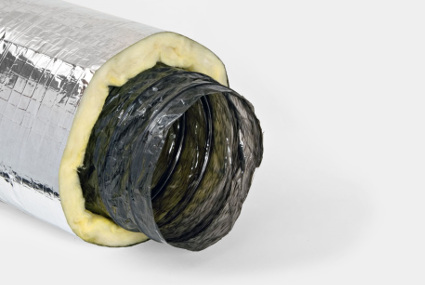

AF-643

7.6m Insulated PET core reinforced PET jacket

Insulated polyesterd core and fiber reinforced jacket

AF-643

Product Specification

Construction

two layers of metalized and clear polyetster reinforced with fiberglass scrim, 25 mm fiberglass insulation.

Components

Metalized and clear Polyester, 25mm fiberglass insulation.polyester scrim, Fire retardant adhesive.

Technical Data

  • Product Type:Flexible Air Duct
  • Material:Polyester
  • Working Temperature:-30°C to +125°C
  • Maximum Pressure:3000 in. w.g
  • Maximum Air Velocity:30 FPM
