AF-182

SONOMO

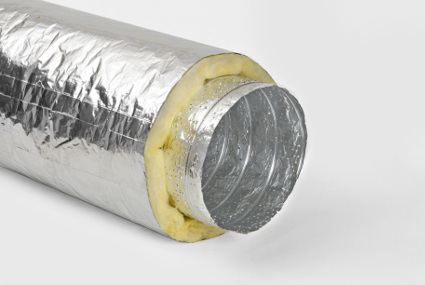

Insulated Mo/M1 Acoustic flexible duct

AF-182

Product Specification

Construction

Multiple layer acoustically perforated inner core, insulated with fiberglass, covered by a multiple layer outer jacket.

Components

Core: Multiple layer Aluminum/Polyester supported by a Bronze coated wire helix, Fire retardant adhesive, Insulation: 25mm thick fiberglass, Outer jacket: Multiple layer Aluminum/Polyester.

Technical Data

  • Product Type:Flexible Air Duct
  • Material:Aluminum
  • Class:M0/M1
  • Working Temperature:-30°C to +250°C
  • Maximum Pressure:3000 in. w.g
  • Maximum Air Velocity:30 FPM
